INSTTLATION PROJECT INSTRUCTION

SITE WORK'S BEFORE THE START OF LIFT WORK

•  POINTS NEED TO BE DO BY CLIENT  :

  •ARRENGE THE SCAFFOLDING MATERIAL
  •LOCKABLE ROOM FOR MATERIAL AT 1STOR GROUND FLOOR
  •ALL TYPE OF CIVIL WORK
  •GIVE PROPER POWER SUPPLY – SINGEL OR THREE PHASE WITH EARTHING AND LIGHT ARREGMENT AT EVERY FLOOR
  •ALL TYPE OF FABRICATION WORK

   📩   Please download or print out this pdf for detailed information




  TYPE OF WORK	DESCRIPTION	REFRENCE

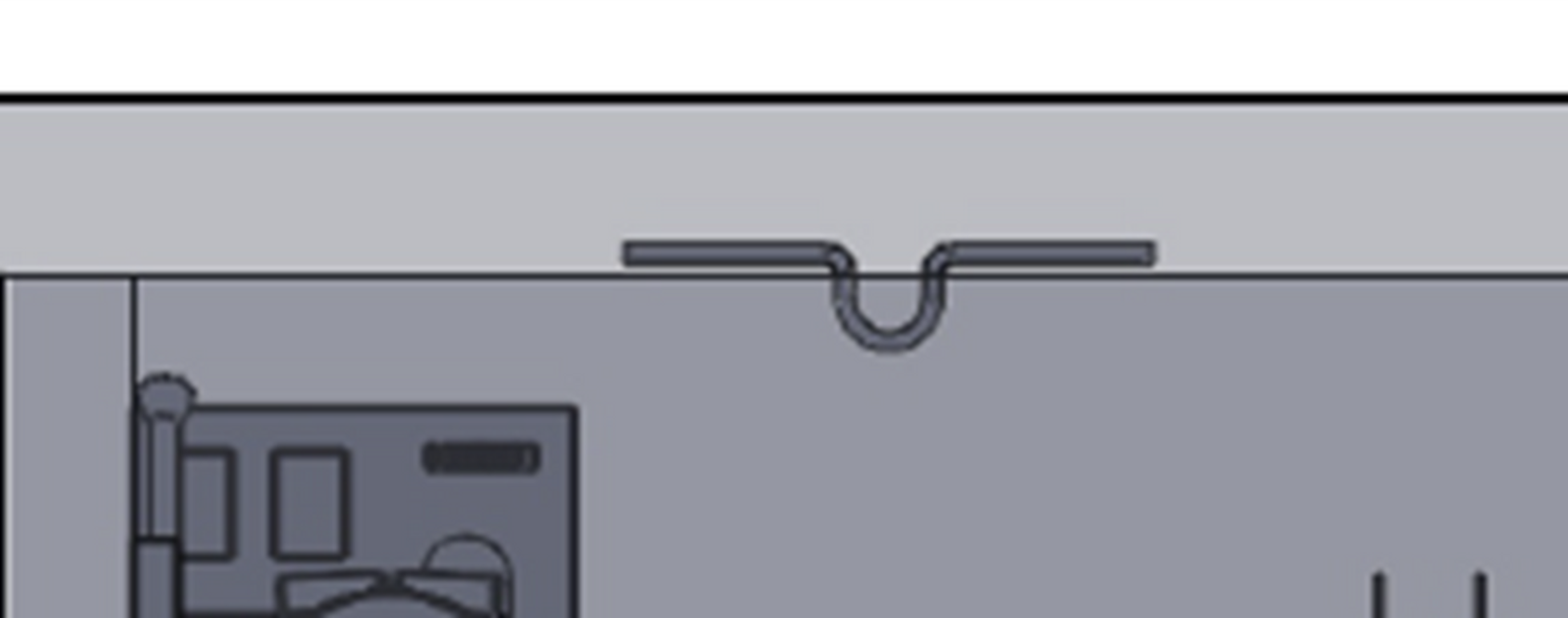

  PUT THE HOOK A 16 MM ROD AT CENTER OF RCC TOP ROOF DURING THE LIFT PERIOD. (U TYPE )	THE BARS OF NOMINAL DIAMETER 16 MM USED IN COMPRESSION FOR AN RCC WORK CONSISTS OF M30 GRADE CONCRETE FOR WHICH DESIGN BOND STRESS IS 1.5 N/MM2.

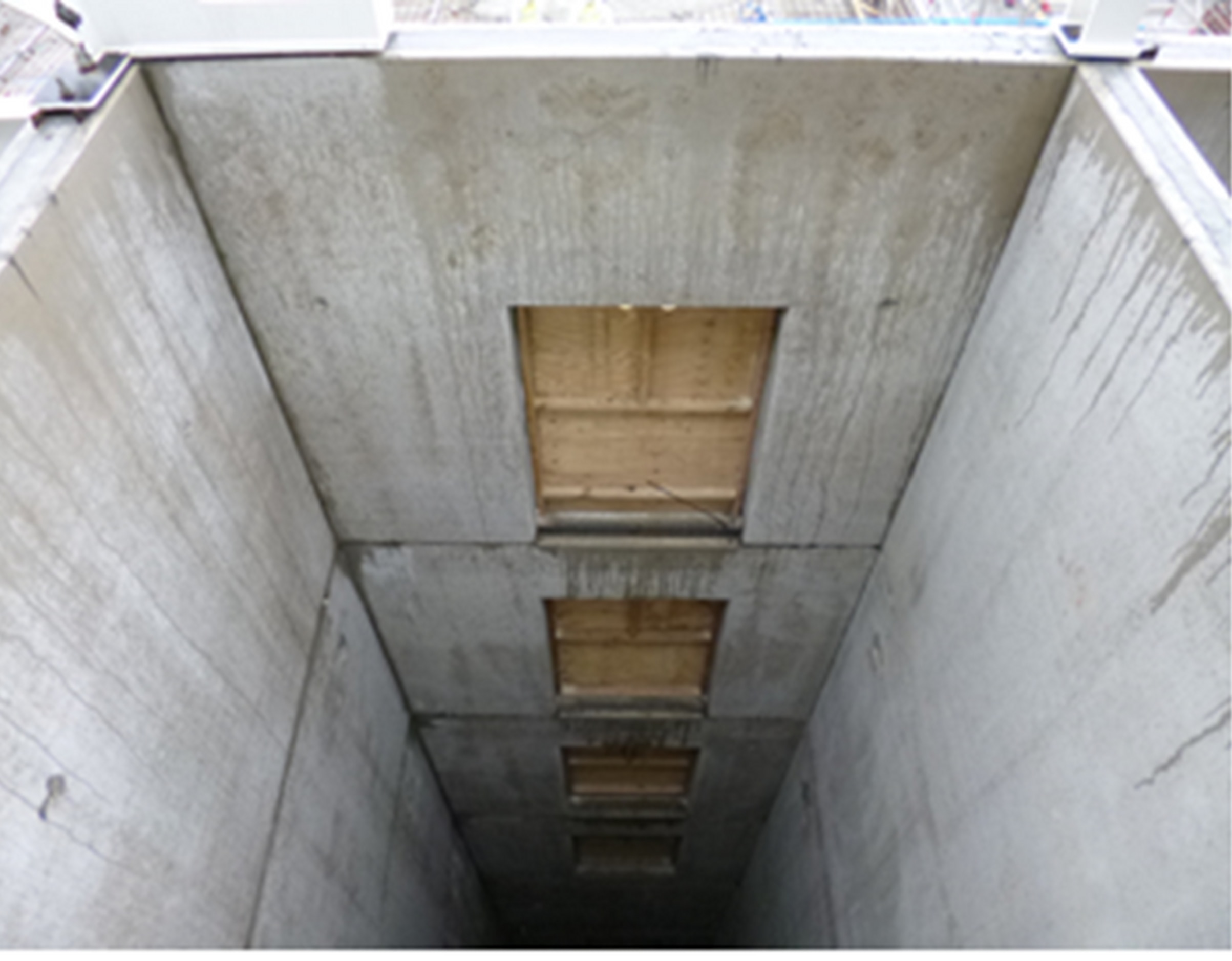

  LIFT SHAFT SHOULD BE CLEAN.	NO EXTRA RCC NO EXTRA IRON NO EXTRA PVC PIPE PIT CLEAN

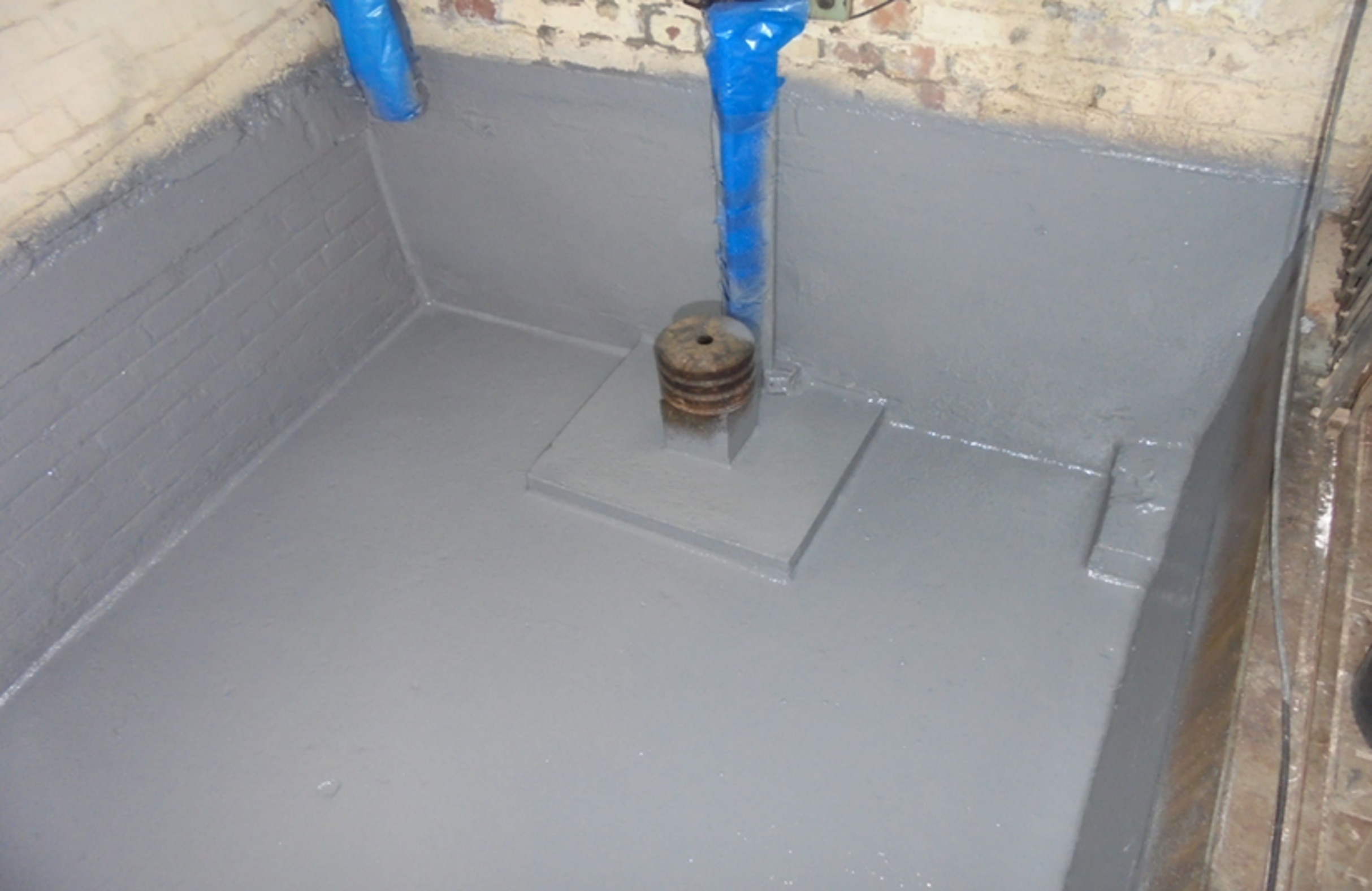

  LIFT PIT SHOULD BE CLEAN AND WATERPROOF AND PIT DEPTH SHOULD BE 1600 MM / 1800MM / 2000MM.	DO PCC WATERPROOFING PIT CLEAN

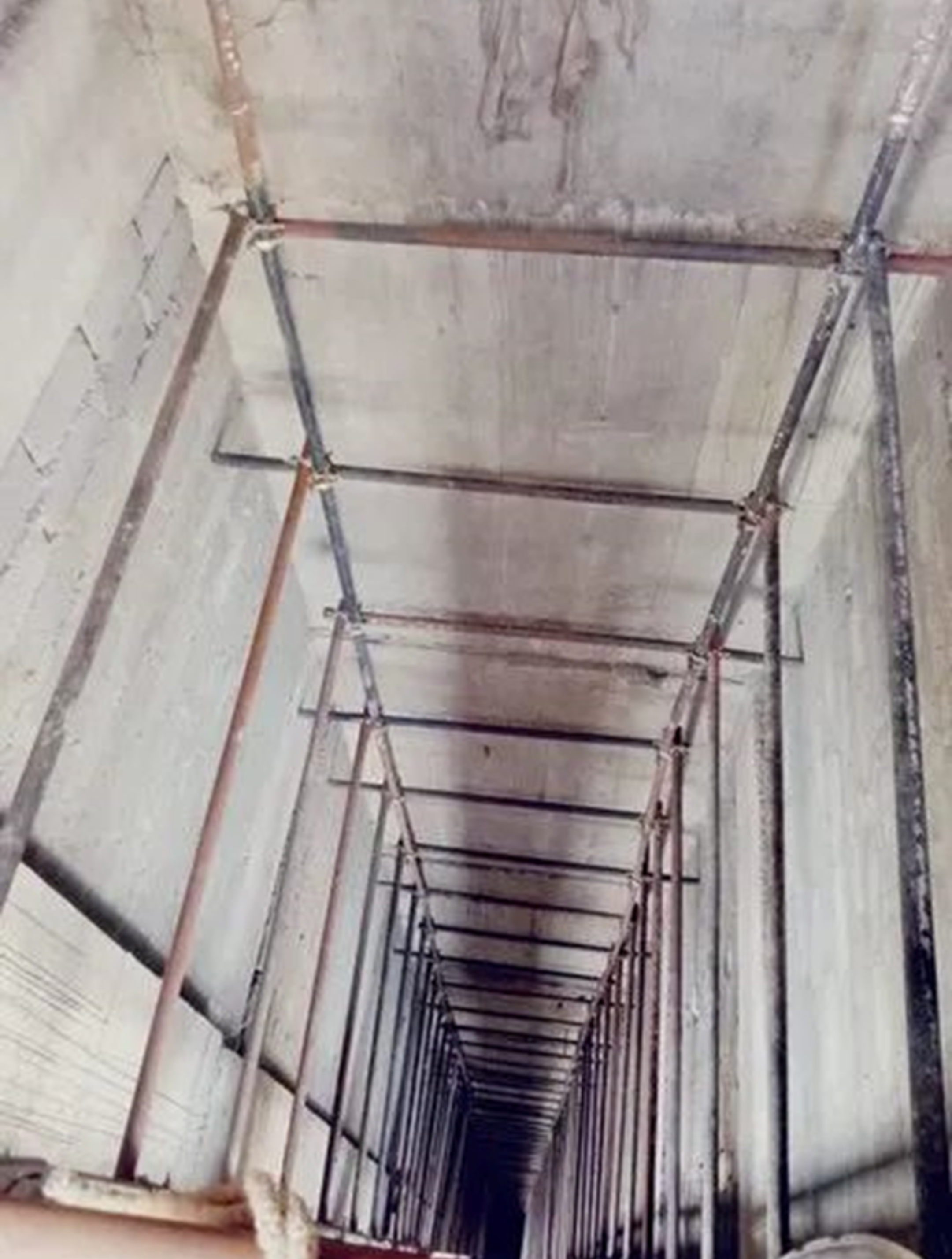

  AFTER THAT STARTING THE WORK OF SCAFFOLDING.( IT’S TAKE AROUND 2 TO 3 DAYS)	PROVIDE SCAFFOLDING MATERIAL

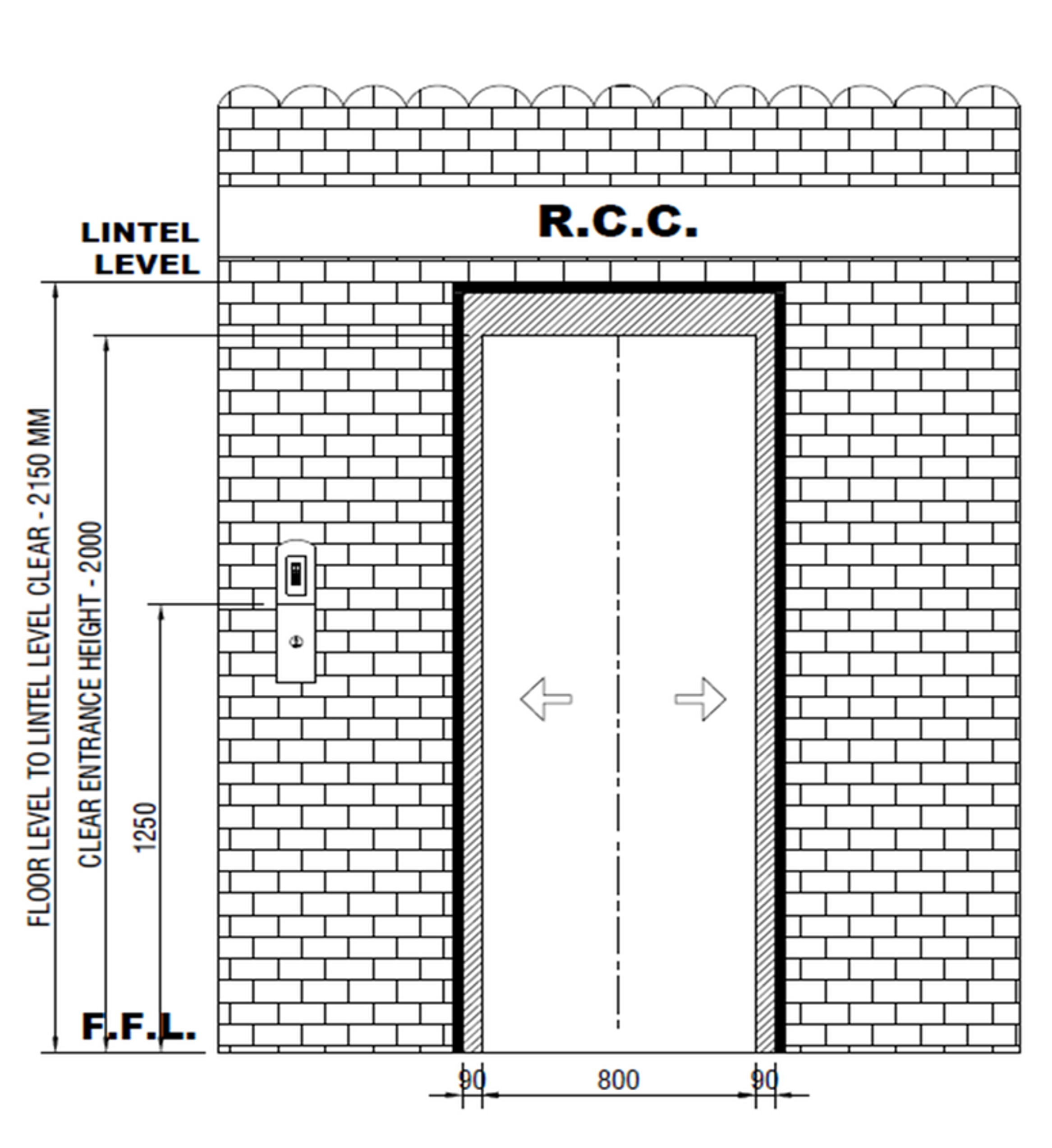

  DO CONSTRUCTION OF SIDE WALL AT EVERY FLOOR AS PER PLUMB OR ERECTOR INSTRUCTION FOR DOOR FRAME SUPPORT	CONSTRUCTION OF SIDE WALL PUT THE RCC LINTEL AT 2150MM TO THE F.F.L. FINISH WITH PLASTER DO WHITE WASH OR COLOR IN WHOLE SHAFT

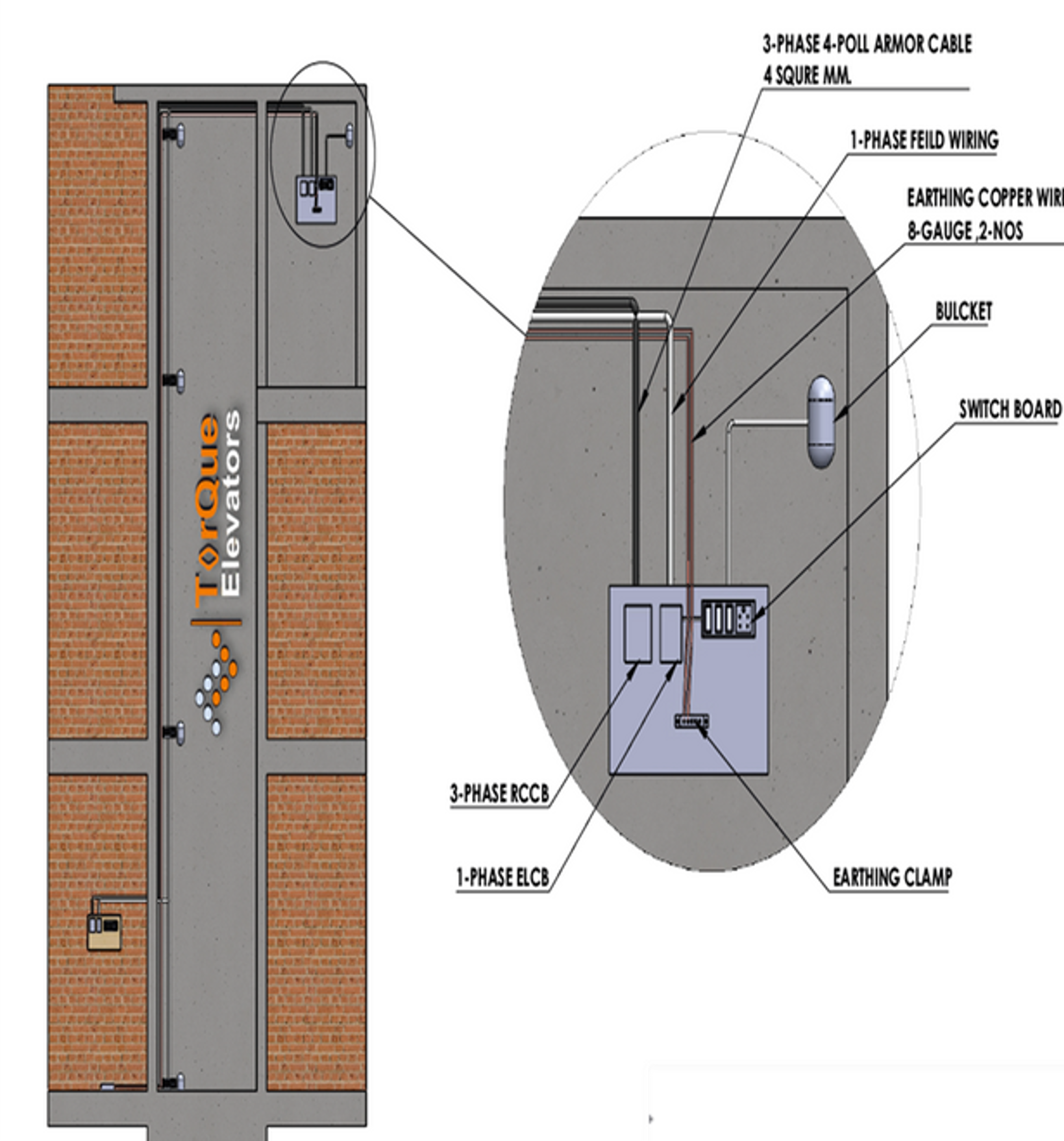

  MANDATORY INTRODUCTION OF RCCB-32A / 64A (30MA) OF THREE PHASE AND SINGLE PHASE.	HAVING TO PROVIDE THE SAME IN THE LIFT LICENSE PROCESS HE SITE SHOULD RECEIVE 420 TO 440 VOLTS IN THREE PHASES, NOT LESS THAN AND NOT MORE THAN PIT CLEAN  📩  CLICK TO GET MORE INFO

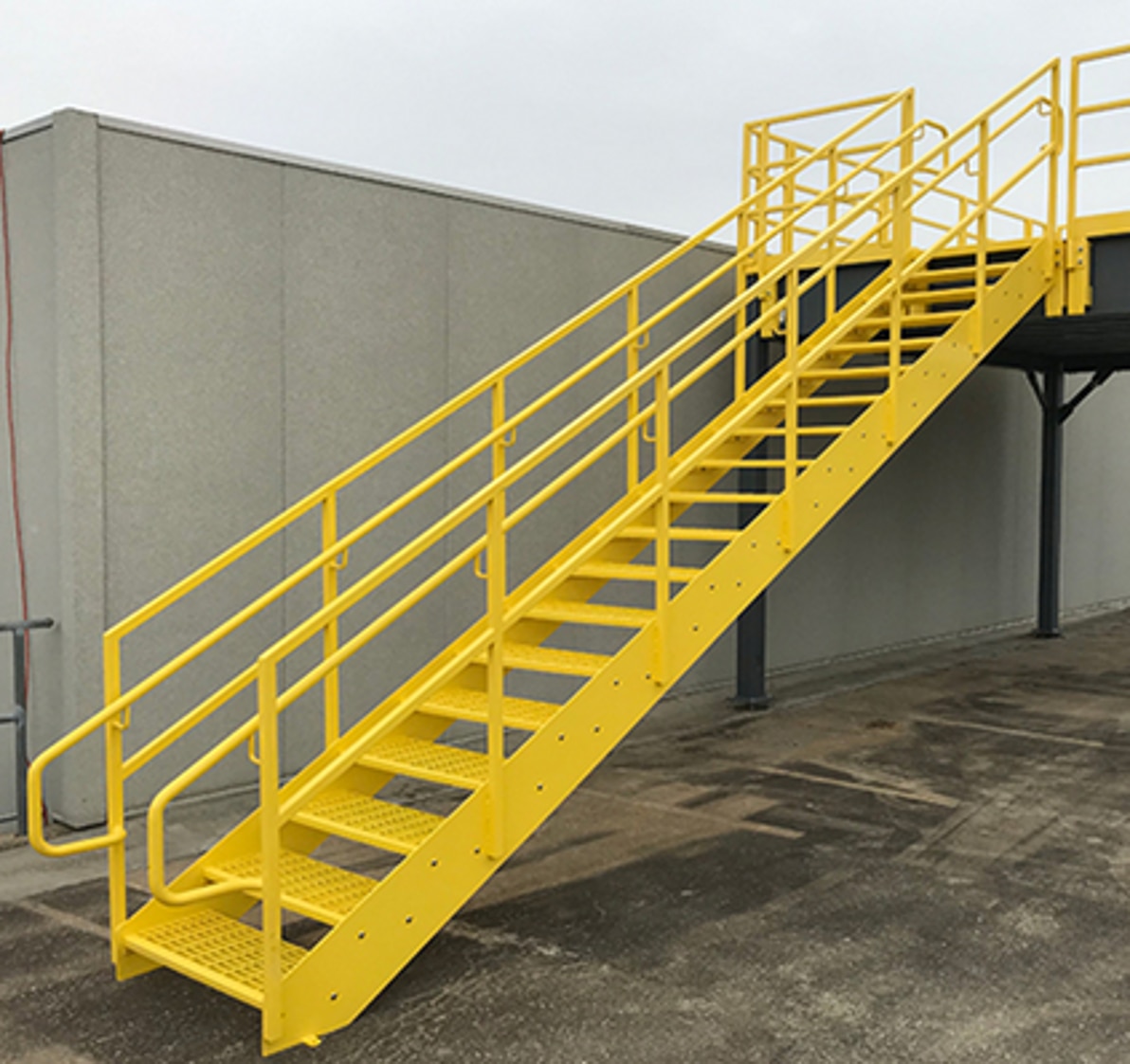

  IF THERE IS A MACHINE ROOM, THE IRON STAIRCASE TO ENTER THE MACHINE ROOM SHOULD BE 3 FEET WIDE AND THE STEPS SHOULD BE 4 INCHES IN SIZE AND THE STAIRS SHOULD BE HANDLED AND PAINTED.	PCC AT FLOORING IN MACHINE ROOM PLASTER ALL SIDE OF WALL DO PAINT OR WHITE WASH 2 NOS CROSS VENTILATION WINDOWS (1.5 x 1.5 mtr ) PAINTED AND LOCKED DOOR (minimum 5 ft x 5 ft) PUT MOSQUITE GRILL ON WINDOW
